Ex-Proof Finned
Tube Air Heaters -
Type RADEX
The electric finned tube heater type RADEX has been designed to heat up rooms where a potentially explosive atmosphere can arise from handling flammable gases, vapours and liquids.
Confined spaces, like hazardous material storage containers and paint rooms, are also part of the application scop of the RADEX.
![](/images/18.23c02f918fc3304e80117/1716990777651/Capture%20d'%C3%A9cran%202024-05-29%20155236.png)
CONSTRUCTION

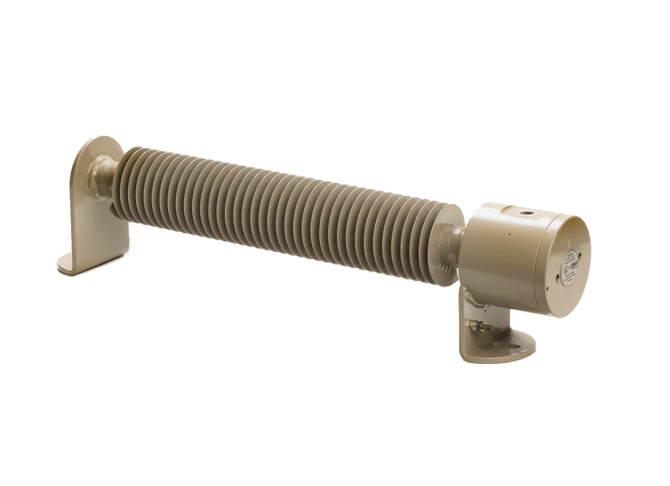

Our Atex - Radex gas and dust explosion-proof finned tube heater is built up of a flameproof enclosure together with a tube provided with fins and welded to the enclosure.
The heating element consists of stacked closed ceramic parts in which the resistance wire is placed. The appliance has two supports for horizontal floor or wall mounting. The steel version is finished with a grey epoxy coating.
The finned tube heater is also available as a low ambient temperature and high ambient temperature version. The electrical connection of the appliance has to be made using cable entries of a certified flameproof type.
The electric finned tube air heater type RADEX does not have a temperature regulator of its own.
The heater has been designed to have stabilized heat-transfer between the heating element and the ambient air while being energized at its rated voltage and with an ambient temperature up to the maximum allowable value of 40°C or 60°C.
The heat density (W/cm²) is determined in such a way that during normal operation the surface temperatures of the heater remain below the applicable temperature class (T3, 200°C or T4 135°C).
Our industrial RADEX explosion-proof finned tube heaters are ISSeP approved and comply with EN-IEC-60079-1 and EN-IEC-60079-31.
The flame proof construction is approved for gas group IIC and dust group IIIC.
MODEL T3/T4 D8500 GAS AND DUST EXPLOSION PROOF
* Grey epoxy-coating
* Steel flame proof construction
* Ambient temperature range RADEX -T3/T4: -30°C - +40°C
Ambient temperature range RADEX -T3: -30° - +60°C
Ambient temperature range RADEX -T3/T4: -50° - +40°C
* Marking (ATEX):
EN-IEC-60079-1 Ex II 2G Ex db IIC T3/T4 Gb
EN-IEC-60079-31 Ex II 2D Ex tb IIIC T200°C/T135°C Db
* IP 66
* 230 Volt standard (other voltages on request)
* Option: cable gland M20 x 1.5mm, see brochure ”Cable glands”.
RADEX type (standard)
TYPE | OUTPUT POWER |
---|---|
RADEX 5 - T3 | 400 Watt |
RADEX 7 - T3 | 500 Watt |
RADEX 10 - T3 | 700 Watt |
RADEX 13 - T3 | 1000 Watt |
RADEX 19 - T3 | 1520 Watt |
RADEX 25 - T3 | 2000 Watt |
RADEX 30 - T3 | 2400 Watt |
TYPE | OUTPUT POWER |
---|---|
RADEX 5 - T4 | 230 Watt |
RADEX 7 - T4 | 320 Watt |
RADEX 10 - T4 | 460 Watt |
RADEX 13 - T4 | 600 Watt |
RADEX 19 - T4 | 880 Watt |
RADEX 25 - T4 | 1160 Watt |
RADEX 30 - T4 | 1400 Watt |
LENGHT | WEIGHT |
---|---|
650 mm | 10,0 kg |
850 mm | 11,5 kg |
1150 mm | 13,5 kg |
1450 mm | 16,0 kg |
2050 mm | 19,5 kg |
2650 mm | 24,5 kg |
3150 mm | 28,5 kg |
RADEX (-LAT) / (-HAT) | -LAT | -LAT | -HAT | ||
---|---|---|---|---|---|
TYPE | TOTAL LENGHT | WEIGHT (APPROX.) | OUTPUT CLASS T3 | OUTPUT CLASS T4 | OUTPUT CLASS T3 |
RADEX 5 | 650 mm | 10,0 kg | 400 Watt | 230 Watt | 230 Watt |
RADEX 7 | 850 mm | 11,5 kg | 500 Watt | 320 Watt | 320 Watt |
RADEX 10 | 1150 mm | 13,5 kg | 750 Watt | 460 Watt | 460 Watt |
RADEX 13 | 1450 mm | 16,0 kg | 1000 Watt | 600 Watt | 600 Watt |
RADEX 19 | 2050 mm | 19,5 kg | 1520 Watt | 880 Watt | 880 Watt |
RADEX 25 | 2650 mm | 24,5 kg | 2000 Watt | 1160 Watt | 1160 Watt |
RADEX 30 | 3150 mm | 28,5 kg | 2400 Watt | 1400 Watt | 1400 Watt |
The RADEX ex-proof finned-tube heaters can be used for heating areas where explosive gases or vapours may be present.
For example: on oil/gas rigs, in the chemical and petrochemical industries and areas where combustible and/or inflammable products are stored. We recommend that you read the instruction manual before installation.
The explosion-proof finned tube heaters RADEX can be regulated by means of an explosionproof thermostat, e.g. type ERT-10 :-20°C - +40°C.
Our Atex type RADEX industrial heater can be used for heating in areas where explosive gases and vapors may be present.
