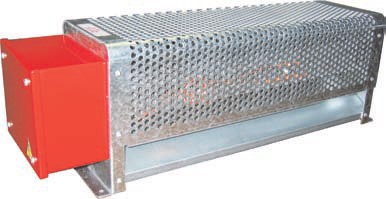

Three-phase convectors, RIT models
RIT convectors are robust industrial heaters with stainless steel casing. Convectors are used as an alternative to tube and fins air heaters.
Those convectors have been specially designed for high-traffic areas such as workshops and storage halls, which require additional protection around the heating element.
We have standard models in various sizes and power in stock.
Please consult us for specific requirements.
Technical information
Applications
Industries
Downloads
General characteristics of our RIT three-phase convectors:
- Class 1 electrical appliance
- Galvanized steel frame
- Galvanized steel connection box with IP53 moisture protection
- Optional: Stainless steel connection box and frame available on request
- Three-pole control thermostat (range 13 to 83°C+/-7°C) and safety thermostat (cut-out at 115°C)
- Metal cable gland
-Highly resistant to impact, water and oil splashes
- Standard voltages: 3~230V delta; 3~400V star
Some standard models:
Ref. | Tension (Volt) | Power (Watts) | Dimensions | ||
A | B | C | |||
RIT 1,5 | 3~230 V / 3~400 V | 1500 | 380 | 310 | 290 |
RIT 3 | 3~230 V / 3~400 V | 3000 | 620 | 550 | 530 |
